Underwater Diffuser

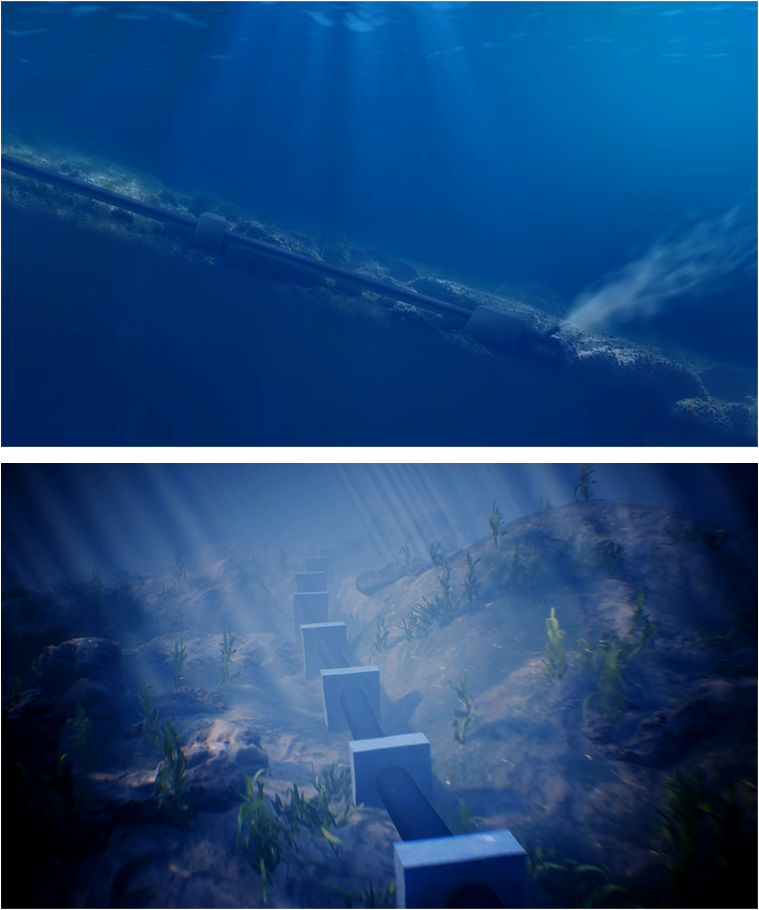

The first image, which was contracted by a client who wanted to show how their proposed underwater piping system would function, was generated using slope data of the ocean floor. The video provided an accurate visual demonstration and helped the client gain support for their project from the local community.

The second image shows the updated version of the plan based on a better understanding of the ocean floor’s topography. It was also updated to properly depict the increased number of cement blocks holding down the pipe, as well as an improved set of diffusers.
